GenieClip® Mount
- Decouples heavy-mounted items such as TVs, kitchen cabinets, headboards, garage door openers, and more, without compromising acoustic isolation
- Designed to connect at least two GenieClip® Mounts using 2x6 steel stud track to align seamlessly with standard GenieClip RST systems
- Load capacity: up to 200 lbs (shear) and 100 lbs (pullout) per mount
- The vibration isolation design maintains wall performance, reducing STC by no more than 1 dB in any ⅓-octave frequency band
- Ships daily from our Nevada and Georgia warehouses
- 5% off on orders over $500
- 10% off on orders over $1000
- 15% off on orders over $2000
*Does not apply to IsoDoors
- Decouples heavy-mounted items such as TVs, kitchen cabinets, headboards, garage door openers, and more, without compromising acoustic isolation
- Designed to connect at least two GenieClip® Mounts using 2x6 steel stud track to align seamlessly with standard GenieClip RST systems
- Load capacity: up to 200 lbs (shear) and 100 lbs (pullout) per mount
- The vibration isolation design maintains wall performance, reducing STC by no more than 1 dB in any ⅓-octave frequency band
- Ships daily from our Nevada and Georgia warehouses
Get it between 1 - 3.
See delivery details
Product Use

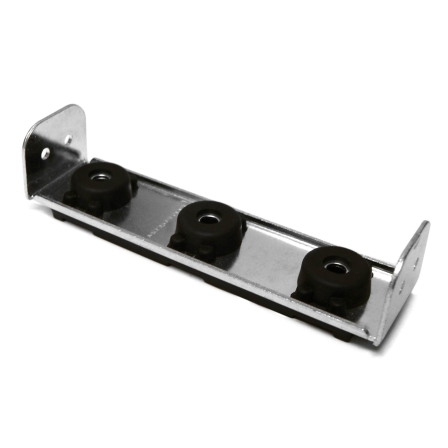

Meet the GenieClip® Mount — an engineered resilient sound isolation bracket designed for heavy-duty wall or ceiling mounting while preserving acoustic performance. Unlike standard clips, the GenieClip Mount is built to support objects like TVs, cabinets, headboards, or garage door openers without compromising isolation.
This unibody bracket combines molded rubber and steel components to decouple mounted loads from framing systems, substantially reducing airborne noise transfer within the assembly. It integrates easily into standard construction workflows, fastening to typical metal stud track or framing, and qualifies for LEED® points in green or sustainable building designs.
Key Applications:
- Heavy wall or ceiling mounted items (TVs, cabinetry, light fixtures)
- Projectors and projector screens
- Bracing handrails, structural reinforcements in high-use wall surfaces
- Retrofit or new construction where resilient mounting is needed
Installation
A minimum of two (2) GenieClip® Mounts are required per installation. The two GenieClip® Mounts should not span more than 48". A 6" 20 gauge metal track will connect the two GenieClip® Mounts to provide support and backing. Read more about this installation and view a simple guide by selecting the link below.
Specification
| GenieClip® Mount Specs | |
|---|---|
| Dimensions | 1-5/8" wide x 6-1/4" tall x 1-1/2" depth |
| Projection | 1-5/8" from structure with 7/8" channel |
| Weight | .41 pounds |
| Minimum Pullout and Shear | 200 pounds (shear) / 100 pounds (pullout) |
| Shore A Durometer | 40 durometer |
