Pipe and Duct Wrap

IsoStore’s Pipe and Duct Wrap is a high-performance vibration damping pad engineered to reduce noise transfer through metal and plastic surfaces. Designed for lightweight materials, it effectively dampens vibration on metal up to 0.14 inches thick (10 gauge) and plastic up to 0.39 inches thick, including PVC drain pipe, Schedule 40, and Schedule 80.

Common uses include wrapping plastic drain pipes, sheet metal ductwork, and other hard surfaces to prevent noise from vibration and airflow. It also performs well in vehicle interiors, HVAC systems, machinery, furnaces, and appliances, offering broad sound control in both residential and industrial settings.

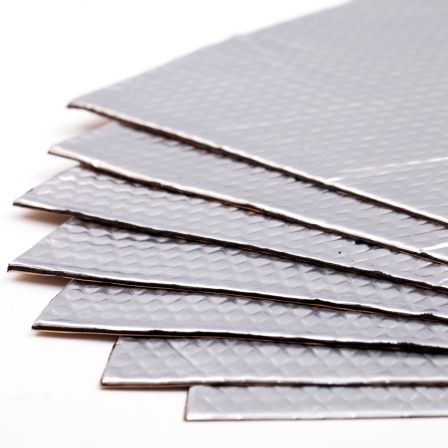

Each isolation sheet features a self-adhesive butyl backing for quick, secure installation on clean, smooth surfaces, no extra fasteners required. The outer surface is a durable aluminum layer that provides added mass and protection, with a reflective finish similar to sheet metal.

With a weight comparable to 1 lb MLV (mass loaded vinyl) and the damping performance of Green Glue Compound, this product delivers superior vibration isolation and sound reduction. IsoStore’s Pipe and Duct Wrap is an efficient, professional-grade solution for anyone seeking to minimize noise at its source.

For the Pipe and Duct Wrap to perform effectively, it must maintain full surface contact with the material it’s applied to. Unlike traditional acoustic barriers that block sound without direct contact, this product works through vibration damping, which requires a tight bond with the surface. This is a permanent installation, and removal requires cutting through the wrap and scraping off the adhesive butyl layer. Plan placement carefully before application

Pipe Wrap Installation Guide

1. Pre-fit before applying: With the release paper still attached, cut the wrap to size and check the fit. It should fully encircle the drain or exhaust pipe, with seams tight or slightly overlapping.
2. Apply slowly: Remove the release paper from the butyl backing, align the sheet, and press it firmly to avoid wrinkles or trapped air bubbles.
3. Wrap completely: Continue around the pipe until fully covered. For elbows, corners, or fittings, use smaller sections to maintain full contact and a smooth seal.

Duct Wrap Installation Guide

Installation on sheet metal ducts follows the same process, but typically involves larger surface areas:

1. Measure and cut to size with the release paper attached.
2. Apply gradually, keeping the surface smooth and ensuring seams are tight or slightly overlapped.
3. The butyl adhesive is extremely strong, so work carefully, removal and repositioning are not possible once applied.

Performance Tips

• Suitable for metal or plastic surfaces up to 1/8 inch thick.
• Doubling the wrap can increase damping performance by up to three times.
• Use on ductwork, drain pipes, machinery panels, or HVAC systems to achieve maximum vibration and noise reduction.

Each Pipe and Duct Wrap sheet measures 19.5 inches by 31.5 inches, covering approximately 4.25 square feet per sheet.

For drain pipe installations, calculate the circumference of any pipe or round duct, multiply the diameter by 3.14.:

• One sheet covers about 38 linear inches of a 4-inch pipe.
• One sheet covers about 62 linear inches of a 3-inch pipe.

For larger surfaces, such as HVAC ducts or machinery panels, calculate the total square footage of the area and divide by 4.25 to estimate how many sheets you need.

Minimal material is wasted during installation since overlaps are small, and leftover scrap pieces can be reused to fill gaps or smaller uncovered areas.

IsoStore’s Pipe and Duct Wrap matches the weight of mass loaded vinyl (MLV) but provides significantly higher damping performance, several times greater than both 1 lb and 2 lb MLV. A single layer offers exceptional vibration reduction, while a double layer can triple the damping effect.

In testing, bare sheet metal has a damping value of approximately 0.006. When covered with our Pipe and Duct Wrap, that value increases to 0.441, representing a 7,500 percent improvement in vibration control. This level of performance is comparable to what Green Glue Compound achieves in wall assemblies.

While no standard laboratory test exists to measure STC ratings for this type of product, real-world customer feedback confirms its effectiveness. A single layer wrapped around a plastic drain pipe performs on par with cast iron piping, which naturally resists resonance. A double layer provides near-total isolation, effectively eliminating vibration and sound transfer through the pipe or duct surface.
